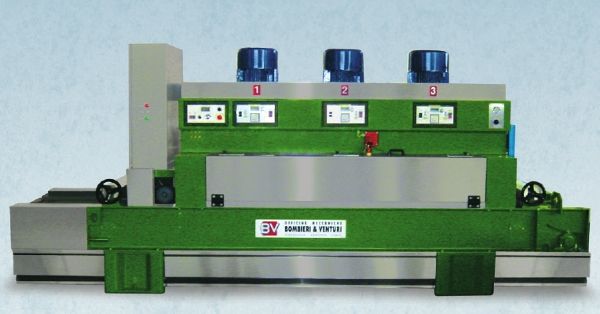

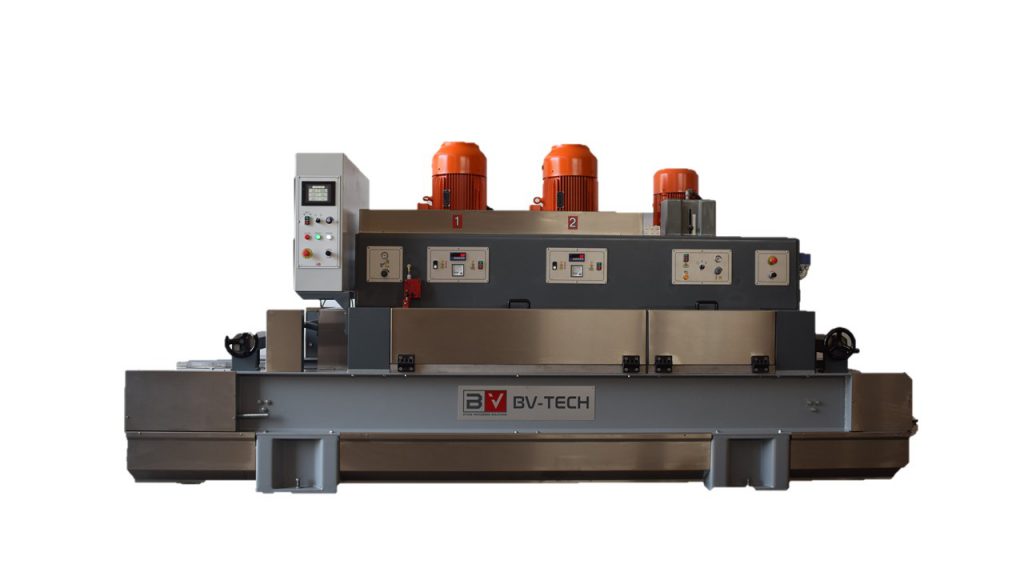

CABV/500-600 M

This machine allows to calibrate strips of marble. The welded structure of the machine is composed by normalised, ground basement made of electro-welded steel, and by a fixed bridge. The operating heads are installed on it. We guarantee high steadiness, accuracy of working and absence of vibrations. The mechanical and electrical components of the machine guarantee high accuracy and reliability, too, even if used till high stress.

The machine is supplied with parts manually lubricated according to the maintenance plans given to the customer. The conveyor belt is nonskid and covered with rubber. All linear axis are executed with big guides. All the mechanical guides can be adjusted without clearance. All the water supply pipes, the nozzle and the plate casings are dimensioned in such a way that they guarantee the water flow for a good dressing of the cutting tool during the processing phases, a good quality of the cut and a long tool life.

The machine has been provided with lifting or fixing grommets. They allow, together with ropes and lifting hooks, to lift the whole structure or the main components. The non-deform ability of the parts is guaranteed during the unloading operation. The switch board is made of sheet steel, thickness 15/10 mm, painted with RAL 7032 paint, IP55 protection level. The supplying unit is composed by a magnetothermic switch with shutter locking to avoid the opening of the switch board with tension.

It can be restored after opening the shutter, in case of maintenance. To guarantee the operator’s safety, an insulation transformer is installed inside for voltage 380V and output 48V for all the driving mechanisms. The thermal relays and the magnetothermics are dimensioned for every specific motor to protect them in case of anomalies.

Get a Quote
  • 1 to 4 units with diamond head
  • calibrating plates diameter mm 550/650
  • maximum calibrating width mm 500/600
  • maximum workable thickness mm 100
  • calibrating head motor power kW 18,5 (kw 22 for CABV/600)
  • up-down calibrating head motor power kW 0,18
  • displayed calibrating head up-down
  • belt forwarding motor power kW 1,1
  • displayed belt forwarding speed m/min min. 1 – max. 5
  • belt speed electronic adjustment
